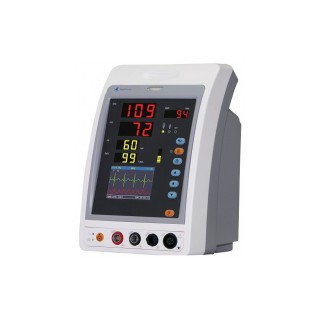

l Our vital signs monitor can measure parameters of SpO2, NIBP, pulse, temperature, etc.
l It has a LCD screen for ECG and respiration waveforms.
l The vital signs monitor comes with a large LED color display which allows users to clearly see all values.
l Nellcor SpO2 technology is optional.
l The alarm limits are adjustable.
l The vital signs monitor offers Nurse Call function.
l It can store up to 12000 groups of NIBP data.
l Network capability with central monitoring system is available
Applications
The vital signs monitor is an affordable patient monitor designed for simple and accurate vital signs assessment or continuous monitoring
Specifications
|
Non-invasive Blood Pressure (NIBP) |
|||
|
Measurement Method |
Oscillometric |
||
|
Cuff Type |
Standard |
Adult |
|
|
Optional |
Pediatric or Neonatal |
||
|
Inflation Time |
≤ 10 sec (Typical Adult Cuff) |
||
|
Defaulted Initial Cuff Inflation Pressure |
Adult |
180mmHg |
|
|
Pediatric |
120mmHg |
||
|
Neonatal |
90mmHg |
||
|
Overpressure Protection Limit |
Adult |
300mmHg |
|
|
Pediatric |
240mmHg |
||
|
Neonatal |
145mmHg |
||
|
Measurement Range |
Systolic |
Adult |
40-275mmHg |
|
Pediatric |
40-200mmHg |
||
|
Neonate |
40-135mmHg |
||
|
Diastolic |
Adult |
10-210mmHg |
|
|
Pediatric |
10-150mmHg |
||
|
Neonate |
10-95mmHg |
||
|
MAP |
Adult |
20-230mmHg |
|
|
Pediatric |
20-165mmHg |
||
|
Neonate |
20-110mmHg |
||
|
Measurement Accuracy |
Mean Difference |
≤ ±5mmHg |
|
|
Standard Deviation |
≤ 8mmHg |
||
|
Measurement Mode |
Manual, Auto & STAT |
||
|
Cycle of Auto Mode |
Setting Range |
1-480minutes |
|
|
Oxygen Saturation (SpO2) |
|||
|
Method |
Dual-wavelength Optical |
||
|
Measurement Range |
1-100% |
||
|
Measurement Accuracy |
Arms≤ 3% at 70%-100% |
||
|
(Arms is defined in ISO9919) |
|||
|
Pulse Rate |
|||
|
Pulse rate |
30-250 bpm |
(whichever is better) |
|
|
±2bpm or ±2% |
|||
|
Others |
|||
|
Ambient Temperature |
5-40℃ |
||
|
Relative Humidity |
15%-90% (noncondensing) |
||
|
Atmospheric Pressure |
70-106kPa |
||
|
Power Supply Voltage |
100-240VAC |
||
|
Power Supply Frequency |
50/60Hz |
||
|
Product Size and Weight |
|||
|
Dimensions |
168mm(D)×172mm(W)×242mm(H) |
||
|
Net Weight |
2.4Kg |
||
|
Gross Weight |
4.7Kg |
||
