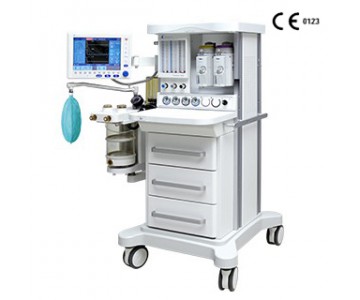

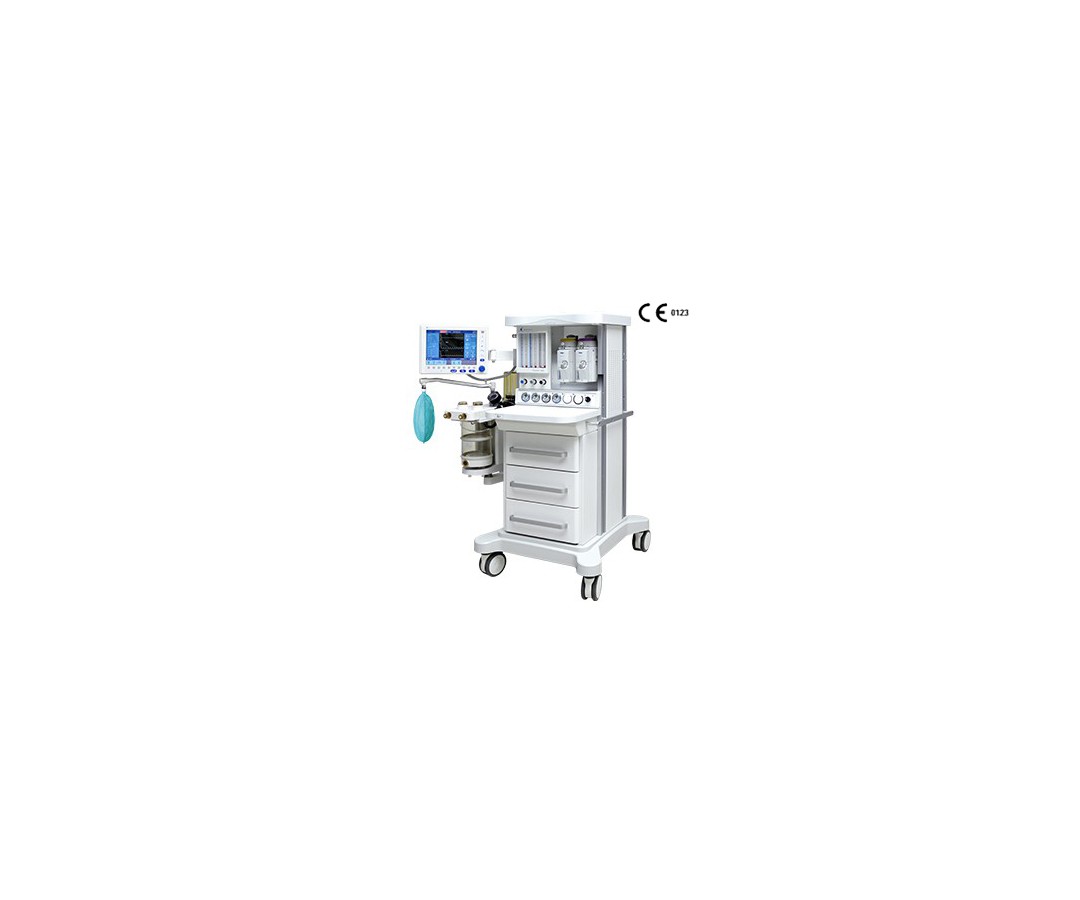

Anaeston 5000

Anaeston 5000 anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation. It offers comprehensive monitoring and has a clear display interface, to help perform high quality anesthesia delivery and management.
Enquiry
  • Overview
  • Documents
  • Related Products



  1. Anaeston 5000 anesthesia machine offers a high-precision output as low as 20ml.
  2. It has automatic tidal volume and compliance compensation.
  3.  The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
  4. It has electronic PEEP function.
  5.  The anesthesia delivery workstation uses autoclavable and latex free components.
  6. Users can benefit from the tool-free maintenance and cleaning of this equipment.
  7. The anesthesia machine is CE compliant, so clients can feel secure in purchasing it.

 Applications

The anesthesia machine is suitable for inhalational anesthesia delivery for adult, pediatric and neonatal patients.

 Specifications of Anaeston 5000 Anesthesia Machine

Model

Anaeston 5000L

Dimension

810x860x1360 mm (WxDxH )

Weight

110 kg

Anesthetic type

Halothane, Enflurane , Isoflurane , Sevoflurane , Desflurane

Gas supply

O2+N2O, or O2+N2O+Air

Input pressure

280~650 kpa (350~400kpa is recommended)

Standard vent. mode

VCV, PCV, PLV, PSV, SIMV+VCV+PS, SIMV+PCV+PS

Display screen

12.1" color

Value display (Set and measured)

Tidal volume, minute volume, respiratory rate, I:E ratio, pressure limit
Airway pressure (Ppeak , Pmean , Pmax , Pplateau , PEEP)
FiO2%, Compliance (ml/cmH2O)
Pressure support level, Inspiratory Window, P-trigger, Inspiratory End
EtCO2 and InCO2 (optional)
CSI, BS%, SQI%, EMG% (Optional)

Graphic display

P-T, F-T, V-T waveforms
P-V, P-F, F-V loops (for compliance, resistance , leakage analysis)
EtCO2 waveforms (when optional EtCO2 module is present)
CSI, BS%, SQI, EMG waveforms (when optional CSM is present)

Optional expansion

Auxiliary Common Gas Outlet(ACGO)
Auxiliary O2 Gas Outlet
Suction System

Anesthetic gas scavenging system (AGSS)
EtCO2 (mainstream/sidestream ) module
CSM module (anesthetic depth and trend)
Anesthetic information management system
External patient monitor
Other equipment

 Although we offer a wide range of optional devices for Anaeston 5000 anesthesia machine, here is a brief instruction of EEG-based consciousness monitoring expansion-CSM,which help improve inhalational anesthesia quality and cut down the cost greatly.

What's CSM?
CSM is a new small handheld electroencephalogram (EEG) monitor for determining depth and trend of anesthesia. It can be used together with patient monitor, anesthesia delivery system, ceiling supply unit, etc. Stand-alone operation is also available.

The cerebral state monitor can offer you the following benefits
1. Quantitative assessment of consciousness
2. Optimal surgical condition determining
3. Shorter recovery time
3. Less drug usage
4. Lower surgery cost

Features
1. Multi-parameter EEG waveform is displayed.
2. CSM Link Software™ for case documentation.
3. Cerebral State Index (CSI) of 0-100 is displayed on all screens.
4. Rechargeable battery operation is available.

Specifications of Cerebral State Monitor (CSM)

Dimension

114x60x31 mm

Weight

130g with battery

Display size

32x17 mm

Classification

Internal power supply/ Class II, type BF, continuous use

Memory

Data recording 18 hours

Digital output

Wireless to RS232 link (ISM 2.4 GHz)

Wireless range

Up to 10 meters

Work condition

Temperature 10–40°C/50–104°F

Rel. humidity 30–75%

Air pressure 700–1060 hPa





Battery

9V Alkaline or rechargeable NiMH (6AM6/IEC:6LR61/ ANSI:1604A)

Supply current

25mA (typical)

Battery lifetime: Alkaline

32h (stand alone) 18h (transmitting wireless)

Battery lifetime: Rechargeable

12h (stand alone) 8h (transmitting wireless)

Alarms

with user selectable CSI high/low limit

Artefact rejection

Automatic

Sensor impedance range

0-10kOhm / measurement current 0.01μA

EEG sensitivity

±400μV

Noise

< 2μVp-p, < 0.4μV RMS, 1–250 Hz

CMR

>140dB

Input impedance

>50MOhm

Sample rate

2000 samples/sec. (14 bits equivalent)

CSI and update

0-100. Filter 6-42 Hz, 1 sec. update

EMG

0-100 logarithmic. Filter 75-85 Hz, 1 sec. update

BS%

0-100%. Filter 2-42 Hz, 1 sec. update
